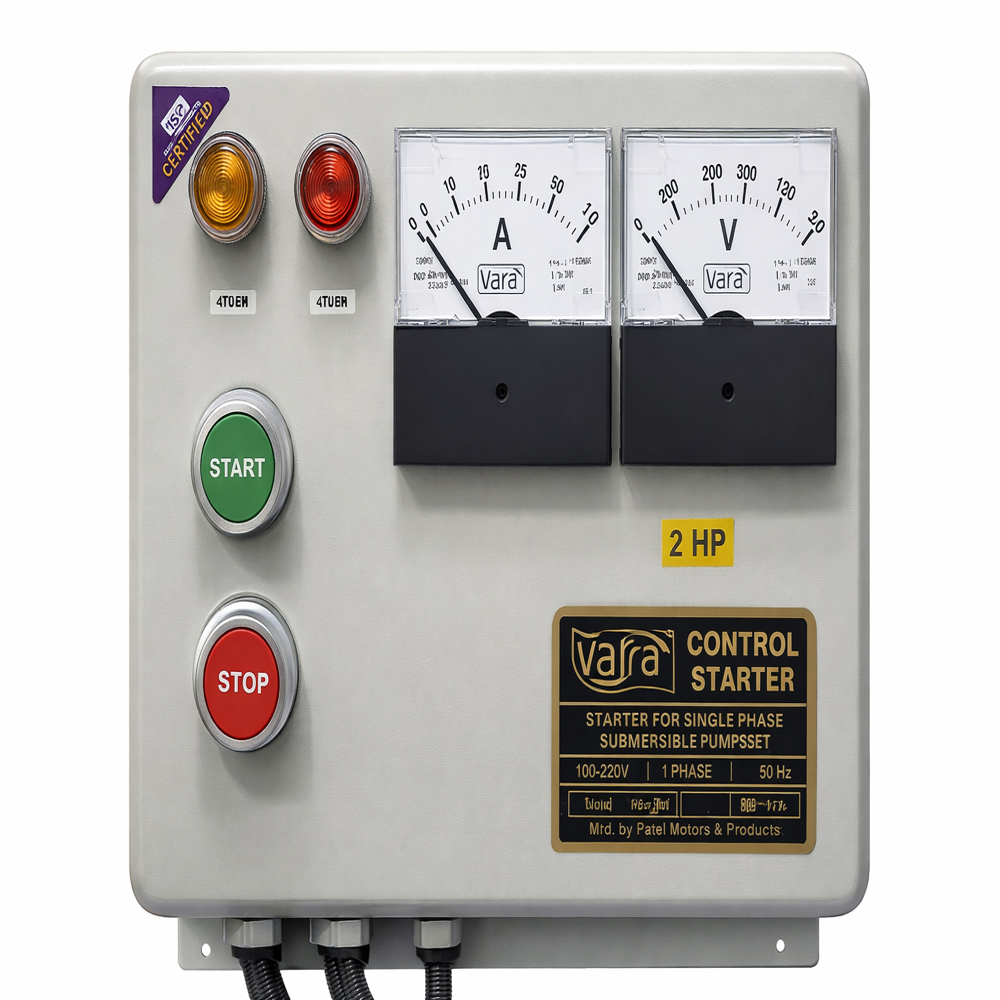

2HP single phase panel

Name: 2HP single phase panel
Brand: Patel Motors And Products
Price: 2300.0 INR
Availability: InStock

Price 2300.0 INR/ Piece

Get a Price/Quote

MOQ : 10 Pieces

2HP single phase panel Specification

Control System
Manual

Features
Weather Resistant, Corrosion Resistant, Compact Design

Rated Current
10A

Connectivity Type
Wired

Way
Single Way

Components
MCB, Contactor, Overload Relay, Indicator Lamps, Push Buttons

Rated Operation Voltage
220V - 240V

Cover Material
Mild Steel with Powder Coating

Cooling System
Natural Air Cooling

Panel Type
Floor Mounted

Thickness
1.6 mm

Operating Voltage
220V - 240V AC

Protection Class
Class I

Base Material
Mild Steel

Current Rating
10A

Rated Insulation Voltage
660V

Protection Level
IP54

Cabinet Material
Mild Steel

Product Type
Single Phase Panel

Material
Mild Steel

Surface Finish
Powder Coated

Standard
IS:8623

Surface Color
Gray

Rated Voltage
240V AC

Frequency (MHz)
50 Hz

Maximum Output Current
10A

Dimension (L*W*H)
18 x 12 x 8 inch

Application
Water Pump/Motor Starter

IP Rating
Ip54

Display Type
LED Indicator Lamps

Maximum HP Supported
2 HP

Enclosure Type
Dust and Water Resistant

Ambient Temperature Range
-10C to +55C

Starter Type
Direct-On-Line (DOL)

Compliance
RoHS Compliant

Weight
7 Kg

Cable Entry
Knockout Provided

Number of Starters
1

Mounting Type
Wall and Floor Mountable

2HP single phase panel Trade Information

Minimum Order Quantity
10 Pieces

Delivery Time
1 Days

About 2HP single phase panel

2HP Single Phase Control Panel Description

A 2HP Single Phase Control Panel is designed to operate and protect a 2 horsepower single-phase motor or pump system. The panel ensures safe starting, smooth operation, overload protection, and electrical safety for residential, agricultural, and industrial applications.

Typical Features

Suitable for 2HP single-phase motors/pumps
Input supply: 230V AC, 50Hz
Heavy-duty contactor and overload relay
MCB/MCCB protection against short circuit and overload
Dry run and single phasing protection (optional)
Auto/Manual operation mode
Voltage and current indication (optional)
Powder-coated metal enclosure for durability
Easy wiring and maintenance

Applications

Borewell pumps
Water supply systems
Agriculture irrigation
Domestic and commercial motor control

Standard Components

Main switch / MCB
Capacitor start/run arrangement
Contactor
Thermal overload relay
Start/Stop push buttons
Indicator lamps

If you want, I can also provide:

Technical specification format
Quotation description
Tender description
Panel nameplate wording
Wiring diagram
BOM (Bill of Materials)

2HP Single Phase Control Panel Description

Typical Features

Suitable for 2HP single-phase motors/pumps
Input supply: 230V AC, 50Hz
Heavy-duty contactor and overload relay
MCB/MCCB protection against short circuit and overload
Dry run and single phasing protection (optional)
Auto/Manual operation mode
Voltage and current indication (optional)
Powder-coated metal enclosure for durability
Easy wiring and maintenance

Applications

Borewell pumps
Water supply systems
Agriculture irrigation
Domestic and commercial motor control

Standard Components

Main switch / MCB
Capacitor start/run arrangement
Contactor
Thermal overload relay
Start/Stop push buttons
Indicator lamps

If you want, I can also provide:

Technical specification format
Quotation description
Tender description
Panel nameplate wording
Wiring diagram
BOM (Bill of Materials)

Versatile and Durable Construction

Constructed from 1.6mm thick mild steel with a powder-coated finish, this panel ensures enhanced corrosion and weather resistance. The enclosure, rated IP54, safeguards against dust and water ingress, providing robust protection in challenging conditions. Flexible mounting options-wall or floor-further expand installation convenience, making it suitable for different sites or retrofit applications.

User-Friendly Operation Features

Equipped with a single Direct-On-Line (DOL) starter and manual control system, this panel lets users operate pumps or motors effortlessly. An integrated suite of protection mechanisms such as MCB, overload relay, and LED indicator lamps ensures user safety and operational clarity. Knockout cable entries and natural air cooling make maintenance and installation straightforward and efficient.

FAQ's of 2HP single phase panel:

Q: How is the 2HP single phase panel installed, and what mounting options are available?

A: This panel supports both wall and floor mounting, allowing for flexible installation in pump rooms or utility areas. The enclosure is designed with knockouts for straightforward cable entry, making wiring and setup quick and convenient.

Q: What process does the Direct-On-Line (DOL) starter use to control the water pump or motor?

A: The Direct-On-Line (DOL) starter supplies full line voltage to the connected motor or pump, enabling rapid and direct starting. Manual push buttons facilitate simple start and stop operations, while integrated protection devices guard against electrical faults.

Q: Where can this panel be effectively used, considering its protection and design features?

A: Thanks to its IP54-rated, dust and water resistant mild steel enclosure and wide ambient temperature tolerance (-10C to +55C), this panel is ideal for use in both indoor and semi-outdoor locations, including agricultural fields, pump houses, and industrial utilities.

Q: What are the key safety and protection mechanisms included in this panel?

A: The panel incorporates a miniature circuit breaker (MCB), overload relay, and provision for proper earthing. LED indicator lamps offer clear operational status, and the enclosure's Class I protection ensures safety during operation and maintenance.

Q: How does the panel's RoHS compliance and adherence to IS:8623 standards benefit users?

A: RoHS compliance ensures restricted use of hazardous substances, promoting environmental and operator safety. Compliance with IS:8623 guarantees adherence to recognized quality and safety standards for low-voltage switchgear and controlgear assemblies.

Q: When should this panel be selected over other starter panels?

A: Choose this panel for applications requiring control of up to a 2HP single-phase motor, where reliable protection, weather-resistant design, and straightforward manual operation are prioritized, such as in water pump control or light industrial processes.
